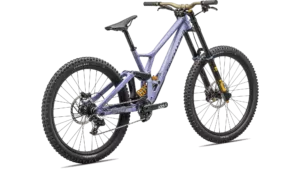

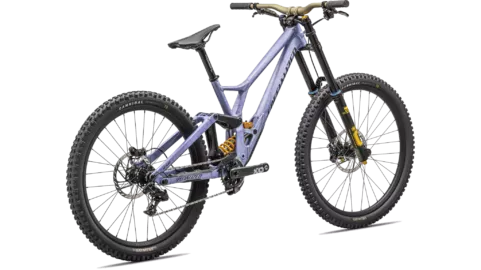

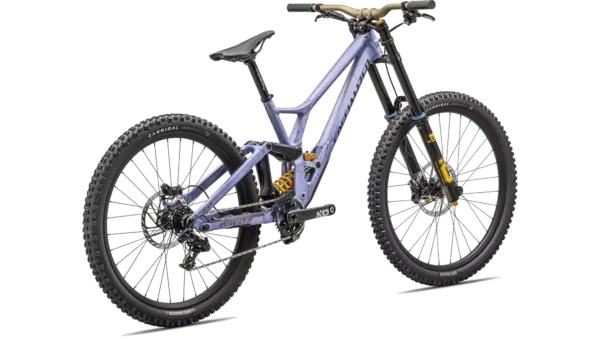

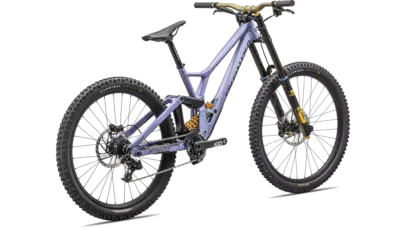

Demo Race
8,300 CHF
Cadre
Cadre
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Poste de Pilotage
Guidon
Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm
Potence
Renthal Integra 35mm Direct Mount Stem, 45mm length
Selle
Body Geometry Henge DH, hollow titanium rails, 130mm
Tige de selle
Thomson, alloy, straight, 12-degree clamp
Suspension
Fourche
Ohlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel
Amortisseur Ar.
Ohlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225×75
Freins
Frein avant
SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm HS2
Frein arrière
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2
Transmission
Pédalier
SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
Dér. Ar
SRAM X01 DH, 7-speed, trigger
Manettes
SRAM X01 DH, trigger, 7-speed
Plateaux
34T
Cassette
SRAM X01 DH, 7-speed, 10-24T
Chaine
Sram PC1130 w/ Powerlink, 11-speed
Roues
Roue Avant
Roval Traverse Alloy 29″, 32h alloy rim, 28mm inner rim width
Roue Arrière
Roval Traverse Alloy 27.5″, 32h alloy rim, 28mm inner rim width
Pneus et Chambres à air
Cannibal, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29×2.3″
Accessoires
Poids
17.56 kg
